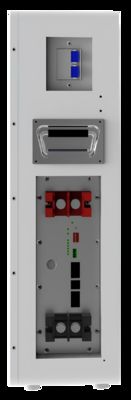

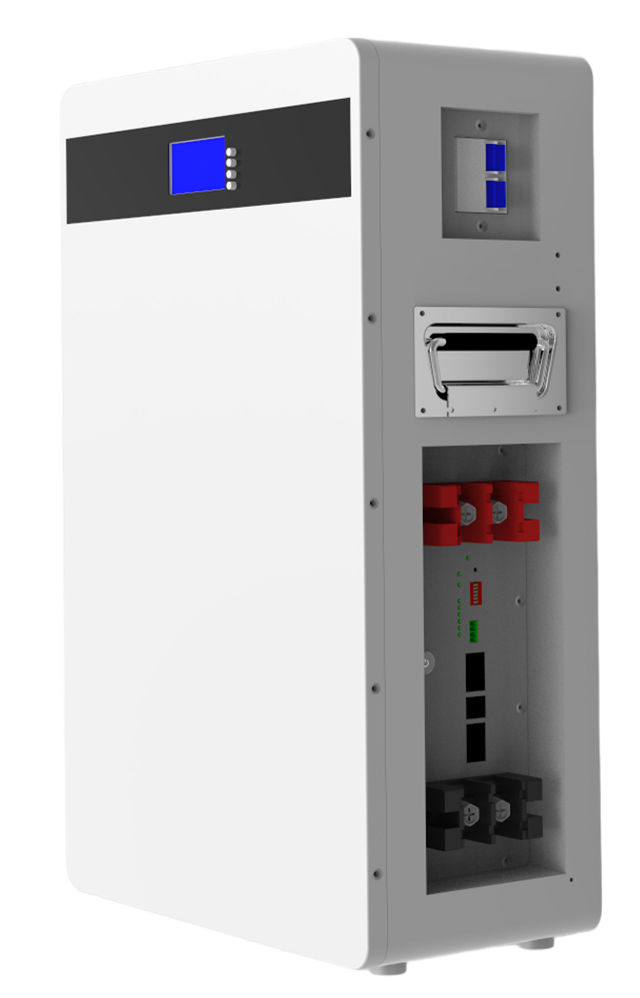

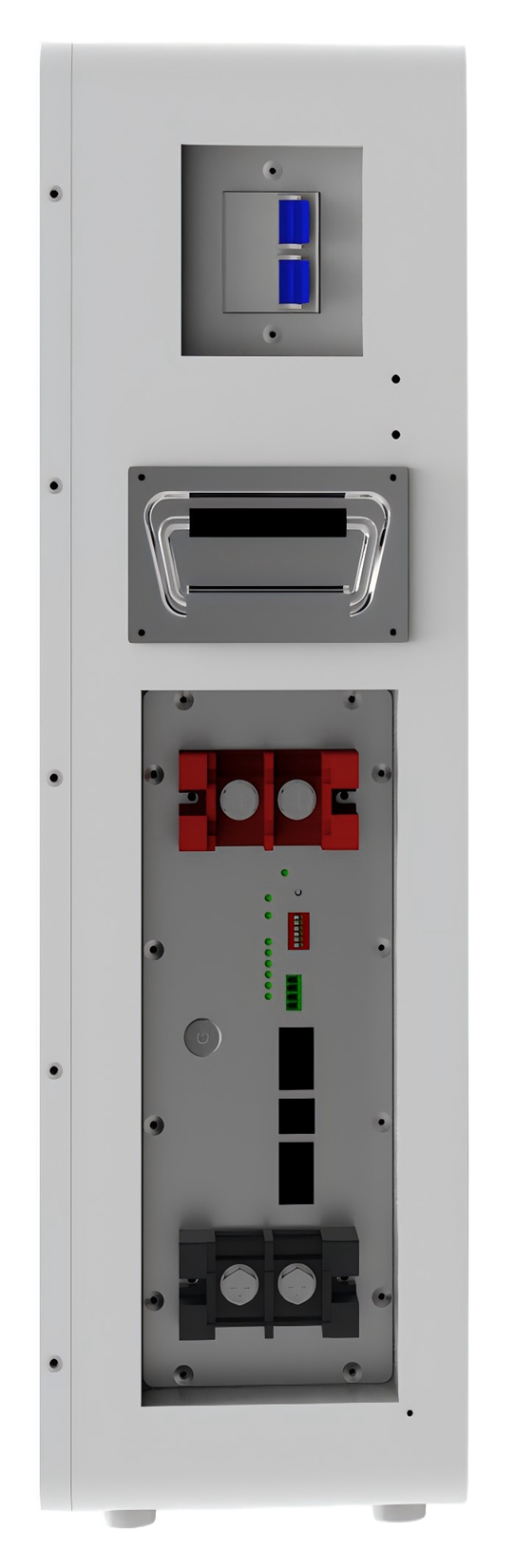

Home Energy Storage System LW-10K Wall-Mounted LiFePO₄ Battery

  • Home Energy Storage System LW-10K Wall-Mounted LiFePO₄ Battery
  • Home Energy Storage System LW-10K Wall-Mounted LiFePO₄ Battery
Plaats van herkomst CHINA
Merknaam Gtech
Certificering UN38.3/CE/MSDS
Modelnummer LW-10K
Min. bestelaantal 1 pc's
Prijs negotiable
Verpakking Details houten doosverpakking
Levertijd 20 werkdagen
Betalingscondities T/t
Levering vermogen 10000 pc's/maand

Neem contact met me op voor gratis monsters en coupons.

Whatsapp:0086 18588475571

WECHAT: 0086 18588475571

Skypen: sales10@aixton.com

Als u zich zorgen maakt, bieden we 24-uurs online hulp.

x
Productdetails
Leven in dienst 10 jaar Batterijkleur Wit
Ingress bescherming IP65 Opslagvochtigheid 65±20% relatieve vochtigheid
Onderhoudstype vrij Bedrijfstemperatuurbereik -20 ° C tot 60 ° C
Batterijceltype LifePo4 Garantie 5 jaar
Markeren

wall-mounted LiFePO4 battery

,

home energy storage system

,

10KWh LiFePO4 battery pack
Laat een bericht achter
Productomschrijving

Home Energy Storage System — LW-10K Wall-Mounted LiFePO₄ Battery


Product Overview


The LW-10K is a high-performance wall-mounted lithium iron phosphate (LiFePO₄) battery designed for residential energy storage applications.
With a usable capacity of 10.24 kWh, it provides reliable and efficient power for home solar storage systems, peak shaving, and backup power.
Featuring advanced safety protection, long cycle life, and intelligent communication, the LW-10K delivers clean, stable, and smart energy for modern households.


Technical Specifications

Item Specification
Battery Type LiFePO₄
Rated Voltage & Capacity 51.2 V / 200 Ah
Rated Energy 10.24 kWh
Operating Voltage Range 40 V – 58.4 V
Charging Voltage 58.4 V
Max Continuous Charge/Discharge Current 200 A
Peak Discharge Current 250 A (1 s, configurable)
Cycle Life > 4500 cycles @ 80 % DOD
Communication Interface RS485 / CAN (standard)
Operating Temperature -20 °C ~ +60 °C
Humidity 0 – 95 % (no condensation)
Noise Level < 40 dB (@ 1 m)
Dimensions (W×H×D) 1000 × 800 × 200 mm
Net Weight 88.2 kg
Certifications UN38.3, MSDS, CE
Warranty 5 Years


Key Features

  1. High Safety – Uses LiFePO₄ chemistry with excellent thermal stability, non-explosive and fire-resistant.

  2. Long Service Life – Over 4500 cycles, supporting 10+ years of daily use.

  3. High Power Output – Continuous 200 A discharge and 250 A peak for high-load applications.

  4. Intelligent BMS – Real-time monitoring and full protection (overcharge, over-discharge, over-current, short-circuit, over-temperature).

  5. Flexible Communication – Supports RS485 and CAN for seamless inverter integration.

  6. Modular & Scalable – Easily expandable for higher energy capacity.

  7. Compact Wall-Mount Design – Space-saving, modern appearance, ideal for residential and small commercial use.

  8. Ultra-Quiet Operation – Noise < 40 dB, suitable for indoor installation.

Typical Applications

  • Residential Solar Energy Storage – Store daytime solar power for night-time use, maximizing self-consumption.

  • Backup Power System – Reliable power supply during grid outages.

  • Smart Home Energy Management – Improve energy independence and reliability.

  • Small Commercial or Office Storage – Peak-load shifting and electricity cost reduction.

Our Services

  1. Turn-key Energy Storage Solutions – From system design and component selection to on-site installation and commissioning.

  2. Professional Technical Support – Communication protocol customization, inverter compatibility testing, and remote monitoring setup.

  3. After-Sales Service – 5-year warranty and lifetime technical support.

  4. OEM / ODM Customization – Flexible options for capacity, design, communication interface, and branding.

  5. Fast Delivery & Global Logistics – Standardized products in stock and worldwide shipping available.

The LW-10K wall-mounted LiFePO₄ battery combines safety, durability, high efficiency, and intelligent control to provide a reliable energy storage solution for homes and small businesses.
Whether for solar integration, backup power, or off-grid applications, LW-10K ensures continuous, eco-friendly, and cost-effective energy independence.
